Mandates API Endpoints

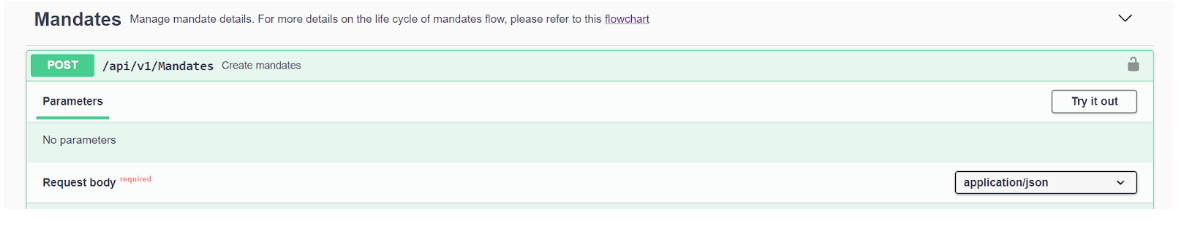

Create Mandates Request #

This endpoint provides the following functionalities:

• Subscriptions payment via online banking (bank account and credit card).
• Subscriptions payment via Visa/Mastercard (credit card, debit card, foreign card).

Request Body Parameter	Type	Validation	Description	Example
customer_name	string	maxLength: 50	Name of customer	Tan Boon Hua
email	string($email)	maxLength: 50	Email of customer	user@example.com
merchant_reference_number	string	maxLength: 40	You may input any reference number here
id_type	integer	Enum: [ 1, 2, 3, 4, 5 ]	ID type of customer	1 – New IC Number, 2 – Old IC Number, 3 – Passport Number, 4 – Business Registration, 5 – Others
id_number	string	maxLength: 18	ID number of customer	900525086780
fpx_mode	string	Enum: [ 01, 02 ]	Whether or not the FPX user uses a retail or corporate bank account for FPX payment	01 – retail, 02 – corporate
fpx_buyer_bank_id	string	maxLength: 10	Bank code of FPX buyer	TEST0021 Refer to list of FPX buyer bank code
effective_date required	string($yyyyMMdd)		For example, 20/05/2023 means collect payment on every 20th of month.	20/05/2023
expiry_date	string($yyyyMMdd)		You may leave it blank if you do not have a date (i.e. if you choose 30/12/2023, the last collection will fall on 20/12/2023)
max_amount	integer	minimum: 100 Cannot be lower than 100 (RM1.00)	This refers to the maximum amount of charge to be deducted (e.g. monthly/daily/ weekly). Values should be in cents. Example if MYR 10.00 should be inputed as 1000. Maximum of MYR 30,000.00 for FPX, and MYR 1,000,000.00 for FPX Corporate	1000
initial_amount	integer	minimum: 100 Cannot be lower than 100 (RM1.00)	This refers to upfront charge during authorization of mandate by customers. Only applicable when debit_type = “AD” (using cards). Specify initial charge of mandate, to be charged on authorization of mandate, outside of the specified collection schedule. Example, if create a mandate where auto is set to “false“ initial_amount is set to “1000″ max_amount is set to “20000“, merchant will charge immediately 1000 upfront, and every month will charge 20000. In other words, can for one-time-charges, upfront fees, etc.	1000
frequency required	string	Enum: [ DL, WK, MT, QR, YR ]	Frequency of deduction/charge.	DL – daily, WK – weekly, MT – monthly, QR – quarterly, YR – yearly
frequency_interval required	integer	minimum: 1	Frequency of deduction/charge interval. ‘frequency_interval‘ = “3“, and ‘frequency‘ = “MT“, means every 3 months Example, if merchant wants to deduct twice a month to input ‘frequency_interval‘ = “2“, and ‘frequency‘ = “WK“. Note: If our frequency_interval does meet requirement, can create schedule on merchant end.	1
max_frequency required	integer	minimum: 1 maximum: 999	Max number of charges within a collection cycle	1
purpose required	string	maxLength: 200	Free-text field for any additional information regarding the purpose of payment.	Monthly subscription
debit_type	string	Enum: [ DD, AD ]	Omit parameter if allow customer to choose debit type. Specify debit type to determine debit type for customer	DD – direct debit (using bank account), AD – auto debit (using card)
return_url	string	maxLength: 150	Upon payment, customers can click on a button e.g. return to merchant site. Return_url is the link where you want the customer to go back to after clicking the button.	<any valid domain>
callback_url	string	maxLength: 150	URL to your server for Payex to update on mandate response	<any valid domain>
accept_url	string	maxLength: 150	Redirect URL upon accepted payment. If not provided, return_url will be used by default. Note: This is for merchants who manually create payment link directly from Payex portal i.e. after payment is successful → where they want customers to be redirected to.	<any valid domain>
reject_url	string	maxLength: 150	Redirect URL upon rejected payment. If not provided, return_url will be used by default. Note: This is for merchants who manually create payment link directly from Payex portal i.e. after payment is rejected → where they want customers to be redirected to.	<any valid domain>
address	string	maxLength: 200	Address of customer	48 Jalan Gembira, Taman Desa
postcode	string	maxLength: 10	Postcode of customer	57100
city	string	maxLength: 150	City of customer	Petaling Jaya
state	string	maxLength: 50	State of customer	Selangor
country	string	maxLength: 2	Country of customer	Malaysia
metadata			Any data as long as in the form of dictionary.
status	string	Enum: [ Pending, Draft ]		Pending
auto	boolean		Enable this to auto collect every month	true
retry	boolean		Enable this to let system auto retry if previous collection has failed	true
retry_count	integer	maximum: 4	4 (the maximum retry count for system is 4) (i.e. payment failed to collect on 20th, system will retry on 21st, 22nd, 23rd & 24th)	4

Create Mandates Response #

A successful Mandate Request creation returns a HTTP 200 status code with the following response parameters.

Body Parameter	Type	Validation	Description	Example
status	string	Enum: [ 00, 99 ]	Status Codes: – For mandate authorization, refer to Response Codes with Type = ‘FPX’ for Direct Debit and Response Codes with Type = ‘Card’ for Auto Debit – For auto debit collection, refer to Response Codes with Type = ‘Card’ – For direct debit collection, refer to Response Codes with Type = ‘BILLING’
result	string($email)	maxLength: 50
status	string	Enum: [ 00, 99 ]	Status: 00 if create successfully Status: 99 if error occurred
reference_number	string		<System generated>
key	string		<System generated>
url	string		<System generated>
error	string		<Error Description>	Invalid Data Format
message	string			Success

Create Mandate Response Codes #

• For mandate authorization, refer to Response Codes with Type = ‘FPX’ for Direct Debit and Response Codes with Type = ‘Card’ for Auto Debit
• For auto debit collection, refer to Response Codes with Type = ‘Card’
• For direct debit collection, refer to Response Codes with Type = ‘BILLING’

Authorization Callback Response (Mandate Authorization Completion) #

This refers to callback response upon mandate authorization completion (for both Direct Debit and Auto Debit) which will be sent via webhook to the specified callback_url. We will be using the charged by cards (Auto Debit) example below:

Body Parameter	Type	Validation	Description	Example
amount	string		For authorization purpose and non-refundable	1.00
currency	string		Currency	MYR
customer_name	string		Name of Customer	Test Customer
description	string		Free-text field for any additional information regarding the mandate authorization payment method.	Monthly Subscription Plan
reference_number	string		Refers to mandate’s ‘merchant_reference_number’ passed by merchant as optional parameter.	<any string>
mandate_reference_number	string		Refers to reference number for mandate generated by Payex	MN10000011621583965
payment_intent	string		This refers to Payment Intent endpoint for creating payment forms.	b96165b897c746c0a2a42032e8bfafea
collection_id	string		Collection ID	owbnr7xq
invoice_id	string		Invoice ID
txn_id	string		Transaction ID	PX10000011627008035
txn_date	string ($yyyyMMddHHmmss)		Transaction Date	20210723104035
external_txn_id	string		External Transaction ID	2009151119230241
response	string		Description of auth_code	Approved
auth_code	string		– For mandate authorization, refer to Response Codes with Type = ‘FPX’ for Direct Debit and Response Codes with Type = ‘Card’ for Auto Debit – For auto debit collection, refer to Response Codes with Type = ‘Card’ – For direct debit collection, refer to Response Codes with Type = ‘BILLING’	00
auth_number	string		Authorization Number	15733223
fpx_mode	string			null
fpx_buyer_name	string			null
fpx_buyer_bank_id	string			null
fpx_buyer_bank_name	string			null
card_holder_name	string			N@me()/ .-_,&Buyer’`~*;:
card_number	string			411111******1111
card_expiry	string			03/27
card_brand	string		Can be any of “VISA”, “MASTERCARD”, “UNIONPAY”	VISA
card_on_file	string	64 alphanumeric key length	Type of “credential-on-file” / “card-on-file” payment for subsequent usage. Indicates future card-on-file usage where customer can save the card for future checkout.	761d35566422d504c96a0f28f3637eeea0d9808a73897f533b53dd9850e4dfbb
signature	string		SHA512(secret + | + txn_id)	3b0806197e8b948a81b2faff2839b3194b9f52707a336e5039a52204a2591abfbd5d4e5aceec4381b15cf0431e02aa6e2c9d17c255e6e7083e47ccfe c182cbaa
txn_type	string	Enum: [ Mandate – Authorization, Auto Debit – Authorization, Malaysia Debit Card, Malaysia Credit Card, Foreign Card ]	Used to differentiate between different callback responses (refer to the list below)  List of available ‘txn_type’ for callback  1. Mandate – Authorization 2. Auto Debit – Authorization 3. Mandate – Approval 4. Malaysian Debit Card 5. Malaysian Credit Card 6. Foreign Card When ‘txn_type’ is either of ‘Mandate – Authorization’ will incur a non-refundable amount of MYR 1.00 to your customer	Auto Debit – Authorization
nonce	string			lenKjMY3VInjYHmtSX398aT2socMZGCOkLIQ8OPPeIaerXSVRW0Arzd33dLnd5M8

Approval Callback (Mandate Approval for Direct Debit only) #

This refers to response upon mandate approval completion which will be sent via webhook to the specified callback_url. There’s two callback for Direct Debit, as first callback is for customer authorization while second callback is for bank approval.

Body Parameter	Type	Validation	Description	Example
application_type	string		Refer to mandate authorization, maintenance or rejection.	01
approval_status	string		Mandate approval status	00
approval_date	string		Mandate approval date	20210721
txn_id	string		Transaction ID of Payex	PX10000171626952548
reference_number	string		Refers to mandate’s ‘merchant_reference_number’ passed by merchant as optional parameter.	<any string>
mandate_reference_number	string		Refers to reference number for mandate generated by Payex	MN10000171626860885
record_number	string		Refers to bank reference number	E-20210721Q964879
fpx_mode	string	Enum: [ 01, 02 ]	Whether or not the customer uses a retail or corporate bank account for FPX payment	01 – Retail, 02 – Corporate
fpx_buyer_name	string		Name of FPX buyer	N@me()/ .-_,&Buyer’`~*;:
fpx_buyer_bank_name	string		Bank name of FPX buyer	CIMB Bank
fpx_buyer_bank_account	string		Bank account of FPX buyer	********1234
signature	string			68f21dfb966f264dbd996ad809828b8e763bc5798fbefb5ada434af3 c6a87873d525f7066c5b9e9963ef676f2e672d2835779bc59b09522 3a43058dc935b04f3
txn_type	string	Enum: [ Mandate – Approval ]	This is applicable to Direct Debit only.	Mandate – Approval

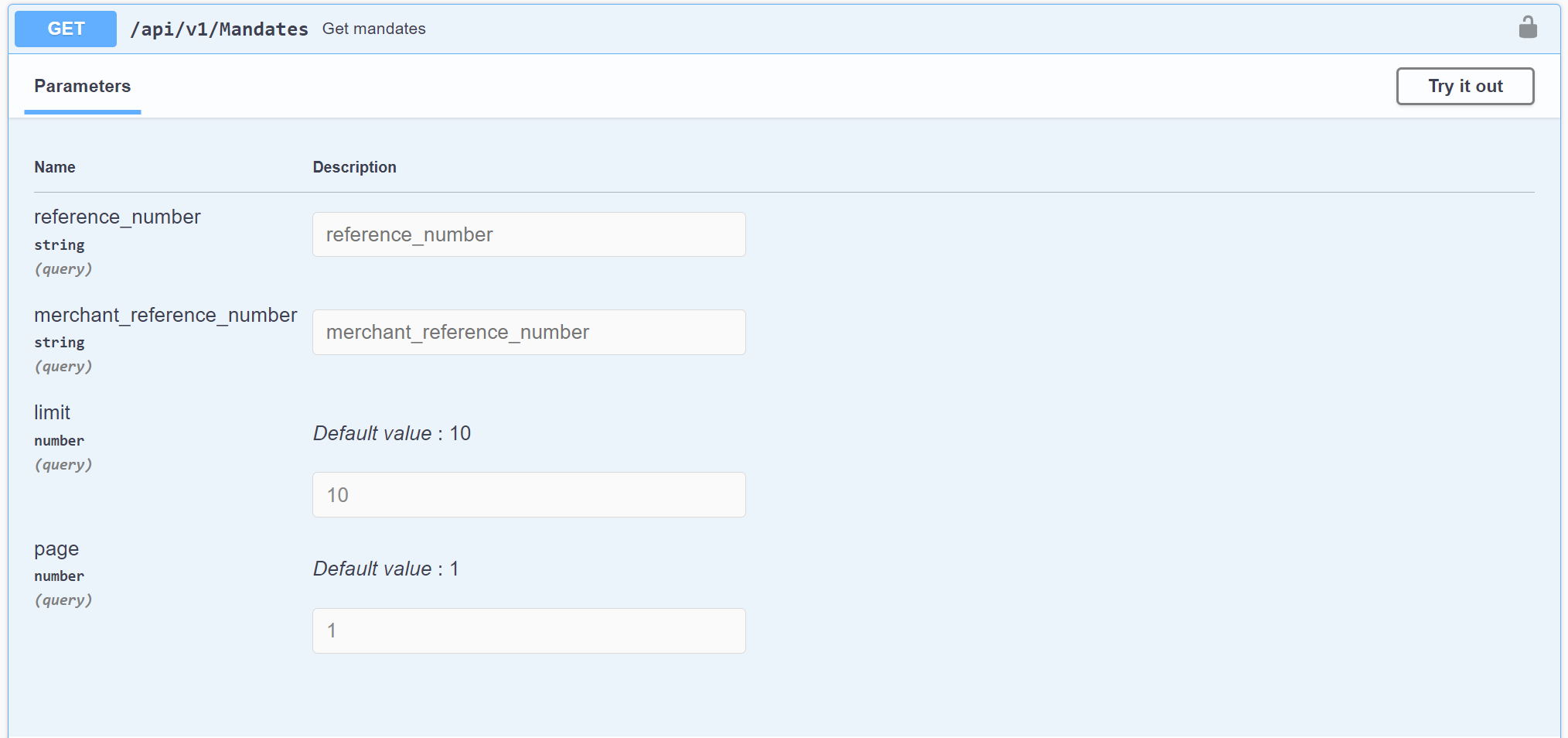

Get Mandate Response #

This endpoint allows you to retrieve the details of mandate payment by the following parameters (optional fields):

Note: Limit is how many rows to get, for example, 10 limit means will return up to 10 rows, and 10 limit and page 2, means rows 11 to 20 of the results

If successful, this endpoint returns HTTP 200 status code with the following response parameters.

Body Parameter	Type	Validation	Description	Example
status	string	Enum: [ 00, 99 ]	Status Codes: – For mandate authorization, refer to Response Codes with Type = ‘FPX’ for Direct Debit and Response Codes with Type = ‘Card’ for Auto Debit
result id	integer
date	string($yyyyMMddHHmmss)		Date when mandate is created
mid	string		Merchant ID
name	string		Name of merchant
title	string
collection_id	string		Collection ID	owbnr7xq
customer_name	string		Name of Customer	Test Customer
contact_number	string		Contact number of Customer	0123456789
email	string		Email of Customer	test@payex.io
txn_id	string		Transaction ID of Payex	PX10000171626952548
reference_number	string		Refers to reference number for mandate generated by Payex	MN10000171626860885
merchant_reference_number	string		Refers to mandate’s ‘merchant_reference_number’ passed by merchant as optional parameter.	<any string>
record_number	string		Refers to bank reference number	E-20210721Q964879
status_code	string	Enum: [ 01, 02, 03, 04, 05, 06, 07 ]	Status code of mandate authorisation	02
status	string	Enum: [ Draft, Pending Authorization, Pending Approval, Approved, Rejected, Terminated, Expiry ]	Status of mandate authorisation by customer	Pending Authorization
approval_status_code	string		Status code of approval	00
approval_status	string		Status of approval	Approved
currency	string		Currency	MYR
max_amount	number($double)	minimum: 100	This refers to the maximum amount of charge to be deducted.	RM500
amount	number($double)		For authorization purpose and non-refundable	RM1.00
fpx_mode	string	Enum: [ 01, 02 ]	Whether or not the customer uses a retail or corporate bank account for FPX payment	01 – retail, 02 – corporate
fpx_buyer_bank_id	string	maxLength: 10	Bank code of FPX buyer	TEST0021 Refer to list of FPX buyer bank code
fpx_buyer_bank_name	string		Bank name of FPX buyer	CIMB Bank
fpx_buyer_name	string		Name of FPX buyer	N@me()/ .-_,&Buyer’`~*;:
fpx_buyer_bank_account	string		Bank account of FPX buyer	********1234
card_holder_name	string		Cardholder name	N@me()/ .-_,&Buyer’`~*;:
card_number	string		Card number	411111******1111
card_expiry	string		Card expiration date	03/27
card_brand	string		Can be any of “VISA”, “MASTERCARD”, “UNIONPAY”	VISA
card_type	string		Type of card used for auto debit	Debit or Credit
card_id	string	64 characters unique identifier	ID of the store card on file, similar to card_on_file Type of “credential-on-file” / “card-on-file” payment for subsequent usage. Indicates future card-on-file usage where customer can save the card for future checkout.	761d35566422d504c96a0f28f3637eeea0d9808a73897f533b53dd9850e4dfbb
id_type	string	Enum: [ 1, 2, 3, 4, 5 ]	ID type of customer	1 – New IC Number, 2 – Old IC Number, 3 – Passport Number, 4 – Business Registration, 5 – Others
id_number	string		ID number of customer	900525086780
address	string		Address of customer	48 Jalan Gembira Taman Mega
postcode	string		Postcode of customer	57100
city	string		City of customer	Petaling Jaya
state	string		State of customer	Selangor
country	string		Country of customer	Malaysia
effective_date	string($yyyyMMdd)		For example, 20/05/2023 means collect payment on every 20th of month.	20/05/2023
expiry_date	string($yyyyMMdd)		You may leave it blank if you do not have a date (i.e. if you choose 30/12/2023, the last collection will fall on 20/12/2023)	30/12/2023
frequency	string	Enum: [ DL, WK, MT, QR, YR ]	Frequency of deduction/charge	DL – daily, WK – weekly, MT – monthly, QR – quarterly, YR – yearly
frequency_interval	integer		‘frequency_interval’ = 3, and ‘frequency’ = “MT”, means every 3 months	1
max_frequency	integer		Max number of charges within a collection cycle	1
day	integer	minimum: 0 maximum: 31	Day of mandate creation
month	integer	minimum: 1 maximum: 12	Month of mandate creation
purpose	string	maxLength: 200	Purpose of payment	Monthly Subscription
debit_type	string	Enum: [ DD, AD ]	Type of mandate	DD – direct debit, AD – auto debit
active	boolean		Enable this to make active or active the mandate	true
auto	boolean		Enable this to auto collect every month	true
retry	boolean		Enable this to let system auto retry if previous collection has failed	true
retry_count	integer	4	4 (the maximum retry count for system is 4) (i.e. payment failed to collect on 20th, system will retry on 21st, 22nd, 23rd & 24th)	4
metadata		{ }	Any data as long as in the form of dictionary
key	string		<System generated>
message	string			Success
total_pages	integer

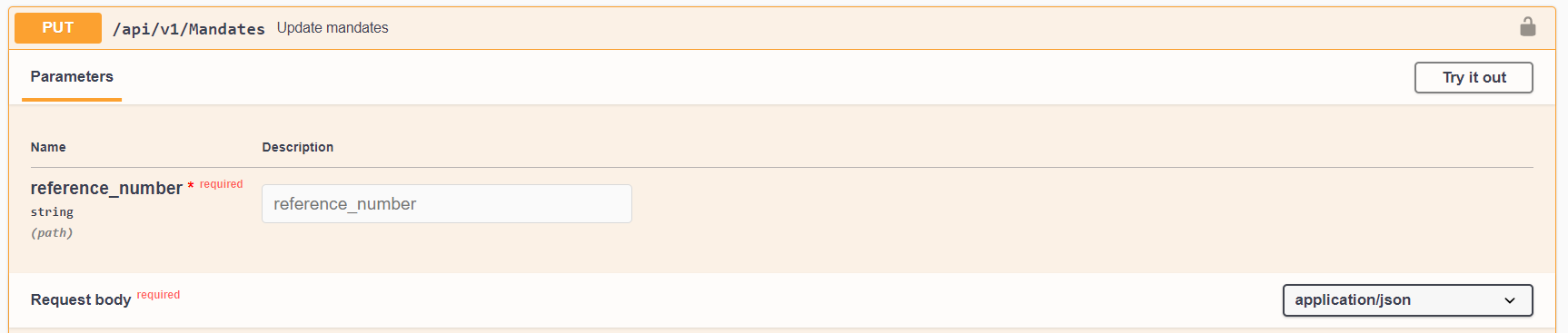

Update Mandates Request #

This endpoint allows you to update mandates (only in Draft status) that have been created using ‘reference_number’ as the request parameter below (required field):

‘reference_number’ refers to reference number for mandate generated by Payex (e.g. MN10000171626860885)

Request Body Parameter	Type	Validation	Description	Example
customer_name required	string	maxLength: 50	Name of Customer	Test Customer
email required	string($email)	maxLength: 50	Email of Customer	test@payex.io
contact_number	string	maxLength: 20	Contact Number of Customer	0123456789
id_type	integer	Enum: [ 1, 2, 3, 4, 5 ]	ID Type of Customer	1 – New IC Number, 2 – Old IC Number, 3 – Passport Number, 4 – Business Registration, 5 – Others
id_number	string	maxLength: 18	ID Number of Customer	900525086780
fpx_mode	string	Enum: [ 01, 02 ]	Whether or not the customer uses a retail or corporate bank account for FPX payment	01 – retail, 02 – corporate
fpx_buyer_bank_id	string	maxLength: 10	Bank code of FPX buyer	Refer to list of FPX buyer bank code
effective_date required	string($yyyyMMdd)	yyyyMMdd	For example, 20/05/2023 means collect payment on every 20th of month.	20/05/2023
expiry_date	string($yyyyMMdd)	yyyyMMdd	You may leave it blank if you do not have a date (i.e. if you choose 30/12/2023, the last collection will fall on 20/12/2023)	30/12/2023
max_amount	integer	minimum: 100	Values should be in cents. Example if MYR 10.00 should be inputed as 1000. Maximum of MYR 30,000.00 for FPX, and MYR 1,000,000.00 for FPX Corporate	1000
initial_amount	integer	minimum: 100	Only applicable when debit_type = “AD”
frequency required	string	Enum: [ DL, WK, MT, QR, YR ]	Frequency of deduction/charge	DL – daily, WK – weekly, MT – monthly, QR – quarterly, YR – yearly
frequency_interval required	integer	minimum: 1	‘frequency_interval’ = 3, and ‘frequency’ = “MT”, means every 3 months	1
max_frequency required	integer	minimum: 1 maximum: 999	Max number of charges within a collection cycle	1
purpose required	string	maxLength: 200	Purpose of payment	Monthly Subscription
debit_type	string	Enum: [ DD, AD ]	Only applicable when debit_type = “AD”. Specify initial charge of mandate, to be charged on authorization of mandate, outside of the specified collection schedule. Can use used for one-time-charges, upfront fees, etc.	DD – direct debit, AD – auto debit
status	string	Enum: [ Draft ]	Only “Draft” status of mandate can be updated.	Draft
auto	boolean		Enable this to auto collect every month. If auto is set to false,	true
retry	boolean		Enable this to let system auto retry if previous collection has failed	true
retry_count	integer	maximum: 4	4 (the maximum retry count for system is 4) (i.e. payment failed to collect on 20th, system will retry on 21st, 22nd, 23rd & 24th)	4
metadata			Any data as long as in the form of dictionary

A successful Update Mandate Request will return a HTTP 200 status code with the following response parameters.

Body Parameter	Type	Validation	Description	Example
status	string	Enum: [ 00, 99 ]	Status Codes: – For mandate authorization, refer to Response Codes with Type = ‘FPX’ for Direct Debit and Response Codes with Type = ‘Card’ for Auto Debit
result status	string	Enum: [ 00, 99 ]	Status: 00 if create successfully Status: 99 if error occurred	00
reference_number	string		Refers to reference number for mandate generated by Payex	MN10000171626860885
key	string		<System generated>
url	string		<System generated> When update requires customers’ authorization.
error	string		<Error Description>	Invalid Data Format
message	string			Success

Delete Mandates Request #

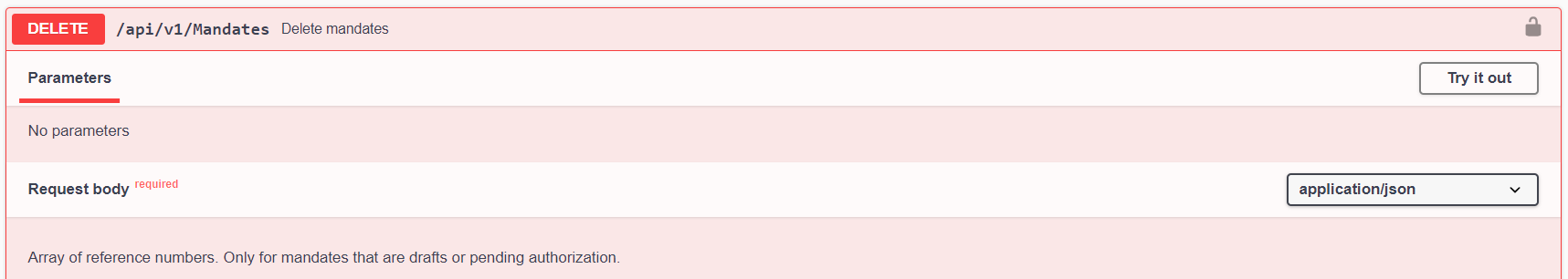

This endpoint allows you to delete mandates using reference_number as the request parameter below (required field):

‘reference_number’ refers to reference number for mandate generated by Payex (e.g. MN10000171626860885)

Note: reference_number is the required parameter for this endpoint and it refers to a list/array of reference numbers for mandate generated by Payex. You may choose to delete multiple mandates at a time and the parameter format will be [“MNxxxx”,”MNxxxx”].

A successful Delete Mandates will return a HTTP 200 status code with the following response parameters.

Body Parameter	Type	Validation	Description	Example
status	string	Enum: [ 00, 99 ]	Status Codes: – For mandate authorization, refer to Response Codes with Type = ‘FPX’ for Direct Debit and Response Codes with Type = ‘Card’ for Auto Debit
result status	string	Enum: [ 00, 99 ]	Status: 00 if create successfully Status: 99 if error occurred	00
reference_number	string		Refers to reference number for mandate generated by Payex	MN10000171626860885
key	string		<System generated>
url	string		<System generated> When termination requires customers’ authorization.
error	string		<Error Description>	Invalid Data Format
message	string			Success

Update Mandate Collection Settings Request #

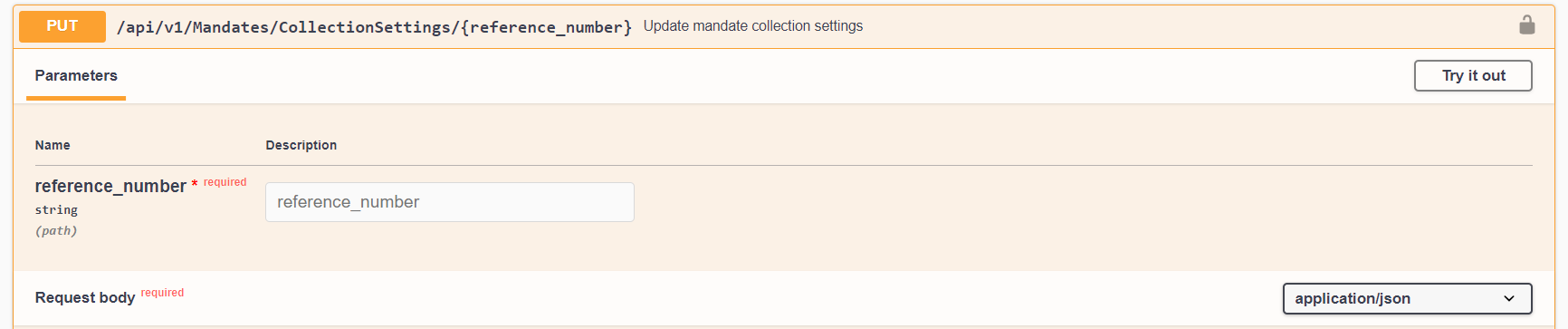

This endpoint allows you to update mandate collection settings with ‘reference_number’ as required parameter:

‘reference_number’ refers to reference number for mandate generated by Payex (e.g. MN10000171626860885)

Body Parameter	Type	Validation	Description	Example
amount	integer	minimum: 100	For example, if max amount was set as rm100, then here can set to any amount less or equal to max amount for the auto collection.	100
day	integer	minimum: 0 maximum: 31	Day of mandate
month	integer	minimum: 1 maximum: 12	Month of mandate
active	boolean		Enable this to make active or inactive the mandate	true
auto	boolean		Enable this to auto collect every month. If auto is set to false, Payex will wait for merchant’s instructions before next deduction.	true
retry	boolean		Enable this to let system auto retry if previous collection has failed	true
retry_count	integer	maximum: 4	4 (the maximum retry count for system is 4) (i.e. payment failed to collect on 20th, system will retry on 21st, 22nd, 23rd & 24th)	4

A successful Update Mandate Collection Settings Request will return a HTTP 200 status code with the following response parameters.

Body Parameter	Type	Validation	Description	Example
status	string	Enum: [ 00, 99 ]
result	string			List []
message	string

Create Collections Request #

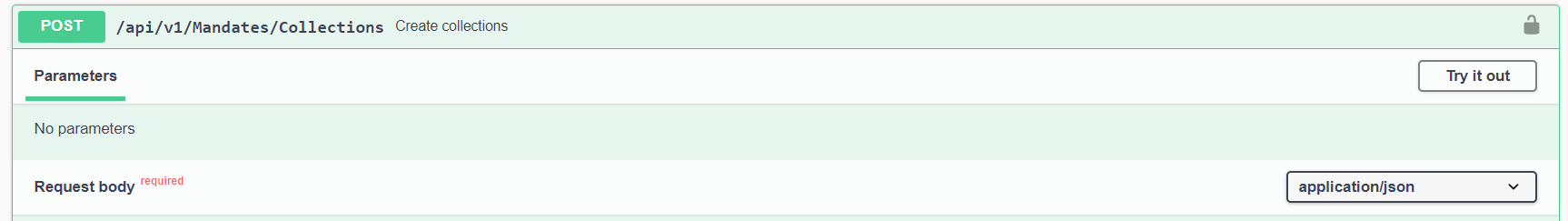

This endpoint allows you to create collection request upon authorisation of mandate by your customers.

Body Parameter	Type	Validation	Description	Example
reference_number required	string		Refers to reference number for mandate generated by Payex	MN10000011621583965
collection_reference_number	string		Passed by merchant as optional parameter	<any string>
collection_date required	string($yyyyMMdd)		Date of collection
amount	integer		Values should be in cents. For example, MYR 10.00 should be inputed as 1000. Value must be less than or equal to “max_amount” of mandate. Maximum of MYR 30,000.00 for FPX, and MYR 1,000,000.00 for FPX Corporate.
retry	boolean		Enable this to let system auto retry if previous collection has failed	true
retry_count	integer	max: 4	4 (the maximum retry count for system is 4) (i.e. payment failed to collect on 20th, system will retry on 21st, 22nd, 23rd & 24th)
metadata			Any data as long as in the form of dictionary

A successful Create Collection Request will return a HTTP 200 status code with the following response parameters.

Body Parameter	Type	Validation	Description	Example
status	string	Enum: [ 00, 99 ]	– For auto debit collection, refer to Response Codes with Type = ‘Card’ – For direct debit collection, refer to Response Codes with Type = ‘BILLING’
result status	string	Enum: [ 00, 99 ]	Status: 00 if create successfully Status: 99 if error occurred
reference_number	string		Refers to reference number for mandate generated by Payex	MN10000011621583965
collection_number	string		Refers to collection number generated by Payex	CL10000023077b6050c4
error	string		<Error Description>	Invalid Data Format
message	string

Collection Callback #

Response upon mandate collection completion which will be sent via webhook to the specified callback_url.

Body Parameter	Type	Validation	Description	Example
collection_status	string		Direct Debit (Refer to BILLING response codes) and Auto Debit (Refer to Card response codes)	Approved
collection_date	string		Date of Collection	15/01/2023
txn_id	string		Transaction ID of Payex	PX10000171626952548
reference_number	string		Refers to reference number for mandate generated by Payex	MN10000171626860885
mandate_reference_number	string		Refers to mandate’s ‘merchant_reference_number’ passed by merchant as optional parameter.	<any string>
batch_number	string		Batch number is unique number for the batch of collections submitted to bank
collection_number	string		Refers to collection number generated by Payex	CL10000023077b6050c4
collection_reference_number	string		Passed by merchant as optional parameter	<any string>
amount	string		Values should be in cents. For example, MYR 10.00 should be inputed as 1000. Value must be less than or equal to “max_amount” of mandate. Maximum of MYR 30,000.00 for FPX, and MYR 1,000,000.00 for FPX Corporate.
signature	string		SHA512(secret + | + txn_id)	3b0806197e8b948a81b2faff2839b3194b9f52707a336e5039a52204a2591abfbd5d4e5aceec4381b15cf0431e02aa6e2c9d17c255e6e7083e47ccfe c182cbaa
txn_type	string	Enum: [ Direct Debit, Malaysia Debit Card, Malaysia Credit Card, Foreign Card ]	Transaction Type

Read Collections Response #

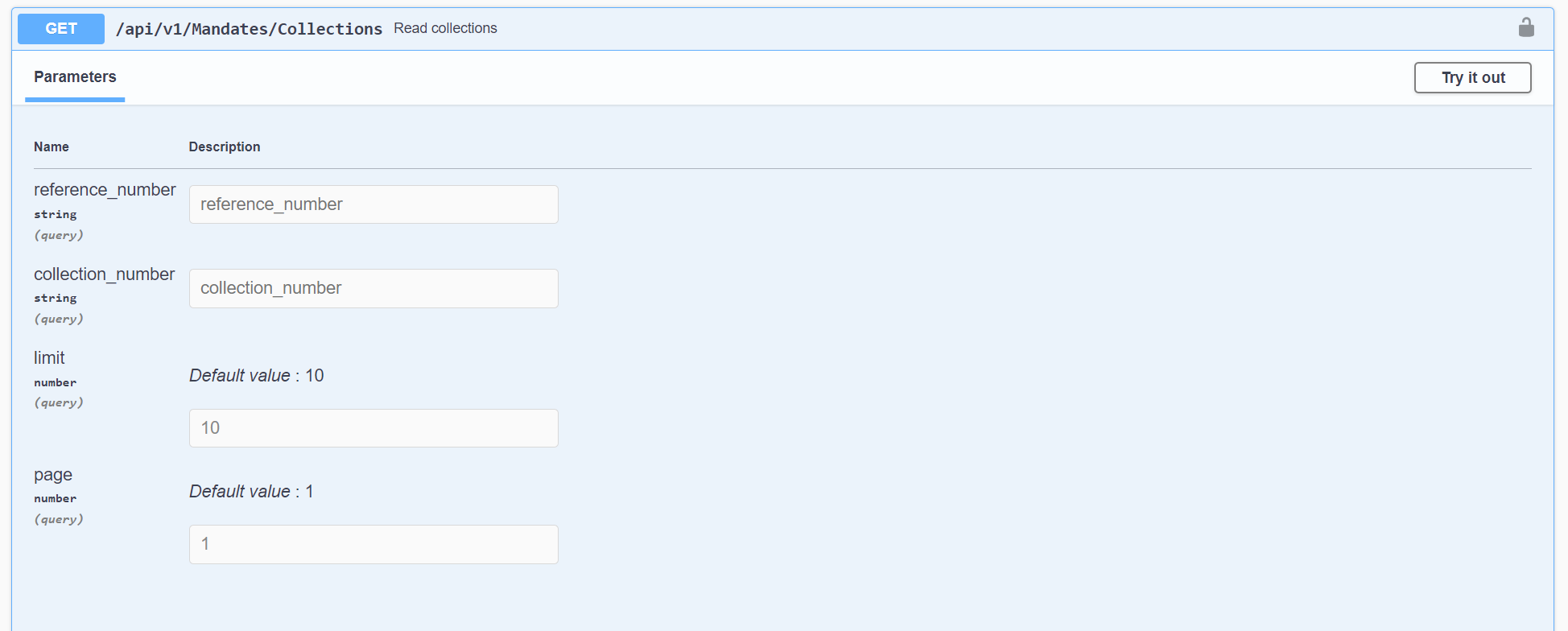

This endpoint allows you to read collections by the following parameters (optional fields):

Body Parameter	Type	Validation	Description	Example
status	string	Enum: [ 00, 99 ]
result id	integer
date	string($yyyyMMddHHmmss)
collection_date	string($yyyyMMdd)		Date of Collection	15/01/2023
reference_number	string		Refers to reference number for mandate generated by Payex	MN10000171626860885
merchant_reference_number	integer		Refers to mandate’s ‘merchant_reference_number’ passed by merchant as optional parameter.	<any string>
batch_number	integer		Batch number is unique number for the batch of collections submitted to bank
collection_number	string		Refers to collection number generated by Payex	CL10000023077b6050c4
collection_reference_number	string		Passed by merchant as optional parameter	<any string>
amount	number($double)		For example, if max amount was set as rm100, then here will be any amount less or equal to max amount for the auto collection.
batch_status_code	string		Refers to batch status code under Batch response codes	01
batch_status	string		Refers to batch status under Batch response codes	Pending
collection_status_code	string		Status code of collection	00
collection_status	string		Direct Debit (Refer to BILLING response codes) and Auto Debit (Refer to Card response codes)	Approved
auto	boolean		Enable this to auto collect every month. If auto is set to false, Payex will wait for merchant’s instructions before next deduction.	true
retry	boolean		Enable this to let system auto retry if previous collection has failed	true
retry_count	integer	maximum: 4	4 (the maximum retry count for system is 4) (i.e. payment failed to collect on 20th, system will retry on 21st, 22nd, 23rd & 24th)	4
retry_left	integer		Number of retry remaining	3
retry_date	string($yyyyMMdd)		Date of retry
metadata			Any data as long as in the form of dictionary
message	string			Success
total_pages	integer

Delete Collections Response #

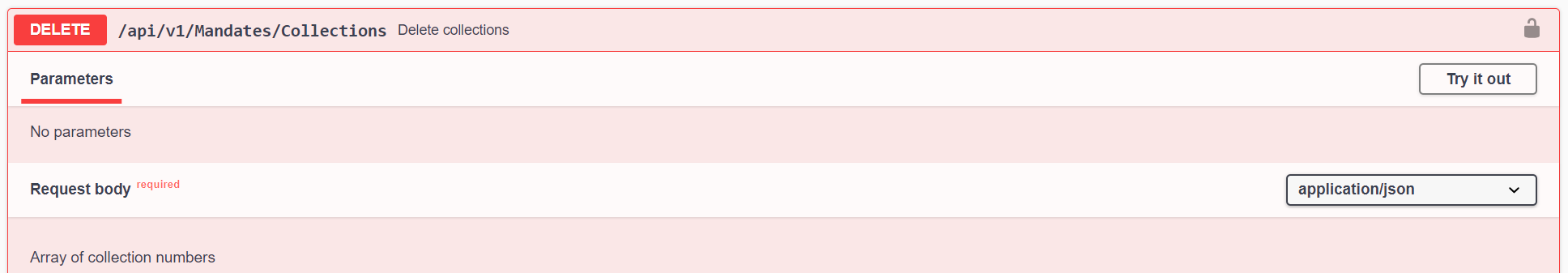

This endpoint allows you to delete collections with ‘collection_number’ as the required parameter below:

A successful Delete Collection will return a HTTP 200 status code with the following response parameters.

Body Parameter	Type	Validation	Description	Example
status	string	Enum: [ 00, 99 ]
result status	string	Enum: [ 00, 99 ]
reference_number	string		Refers to reference number for mandate generated by Payex	MN10000171626860885
collection_number	string		Refers to collection number generated by Payex	CL10000023077b6050c4
error	string		<Error Description>	Invalid Data Format
message	string			Success
